About the Product

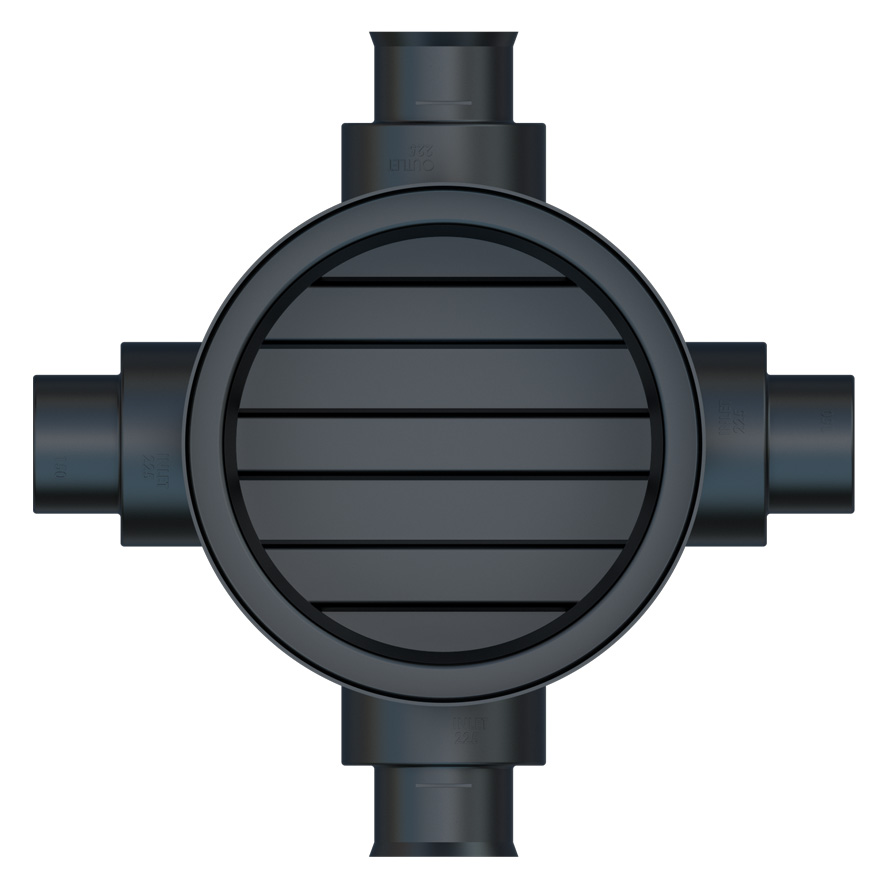

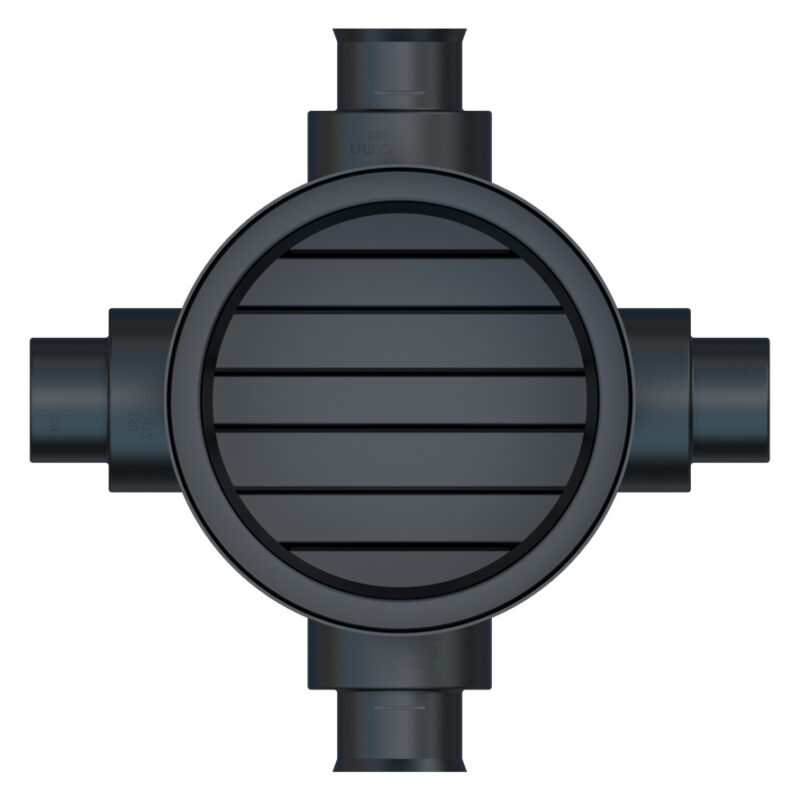

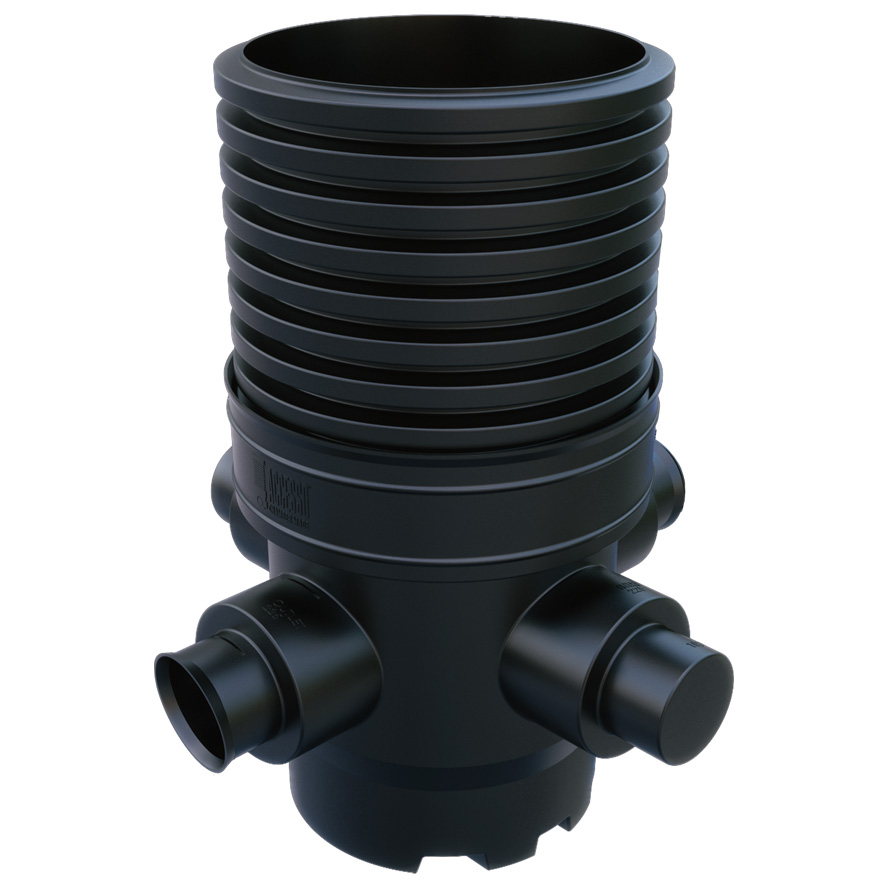

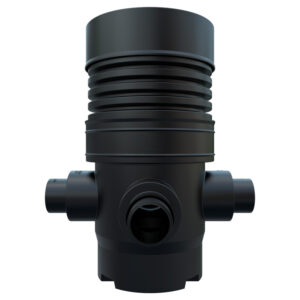

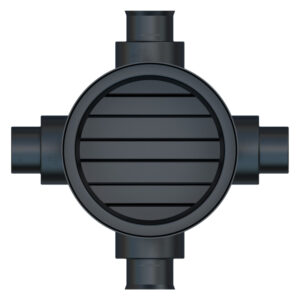

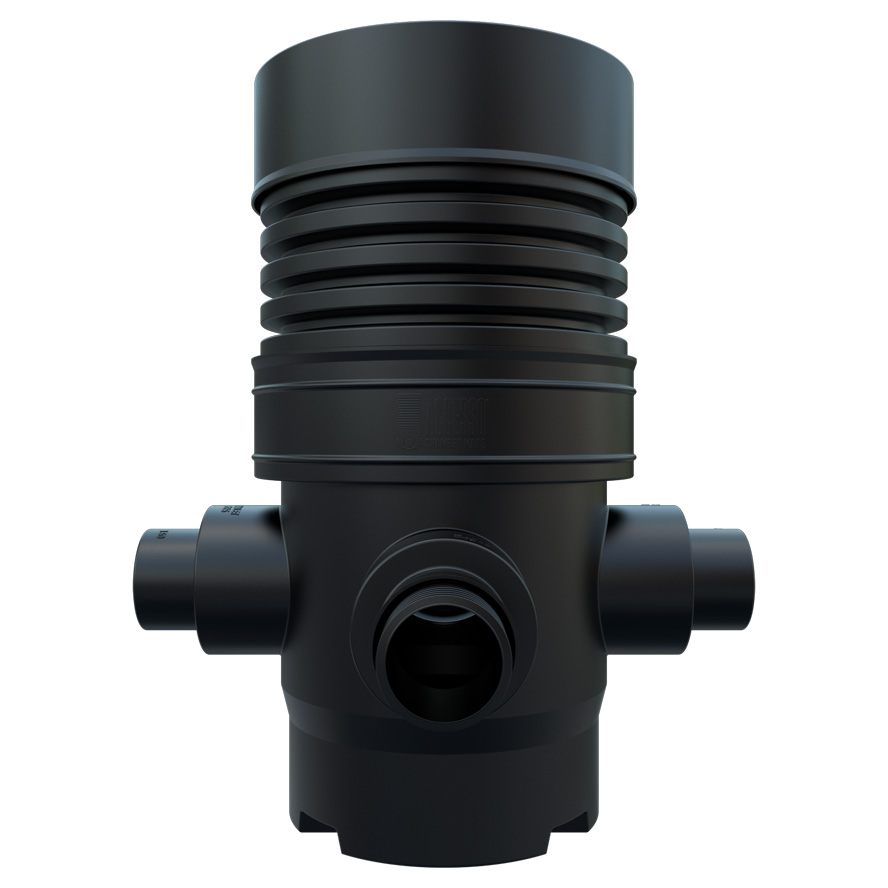

This Accesso catchpit chamber: Model – AICCP600225150CB – has a Ø 600mm rotational moulded chamber base with 150mm or 225mm main channel socket connections, it also includes two further 150mm or 225mm side inlets at 90° and 270° from the outlet at 0°, which are provided as blanked ends for use as required
This catchpit is the first from Turtle to feature a concentric base. Having a concentric base allows the product to be installed in significantly shallower installations than previously possible. Which broadens the range of potential applications while remaining cost-effective

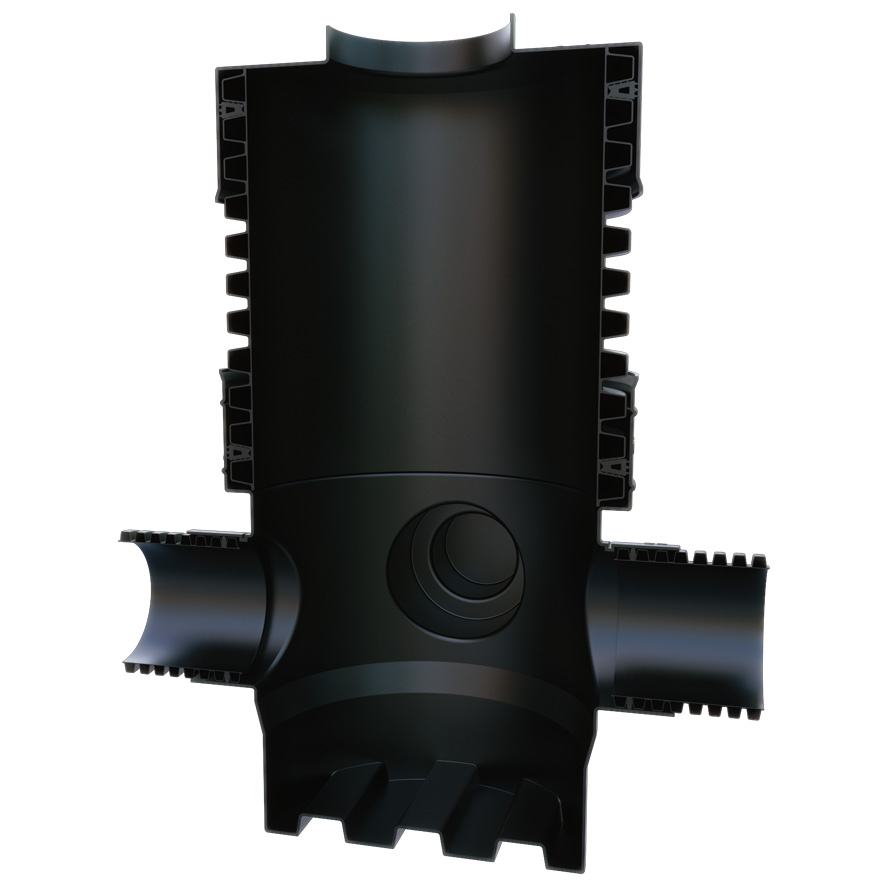

This catchpit chamber is available in 5 different models; as the base alone, or with 4 standard shaft depths. The chamber features a fall from the main inlet to the outlet to help promote flow and has a 95mm step from the side to the main channel
We offer an alternative product with a level invert across all connections which you can see here
The AICCP600225150CB is built to the following standards and regulations | Design & Construction Guidance (Type D & E Chambers) | Building Regulations part H | BS EN 681-1
About Accesso
Our extensive Accesso range is a series of high-strength plastic inspection chambers and catchpit chambers all delivered ready to install, that can cover both Foul and Surface water systems
The Accesso brand features both injection moulded and rotational moulded chambers, which are designed to be compatible with a vast selection of water systems to suit your requirements
Before leaving our factory, all chambers are tested per the required standards
