Product Code: VFCC450

The Vortiflo range is a series of Vortex Flow Control Chambers accommodating a range of flow rates

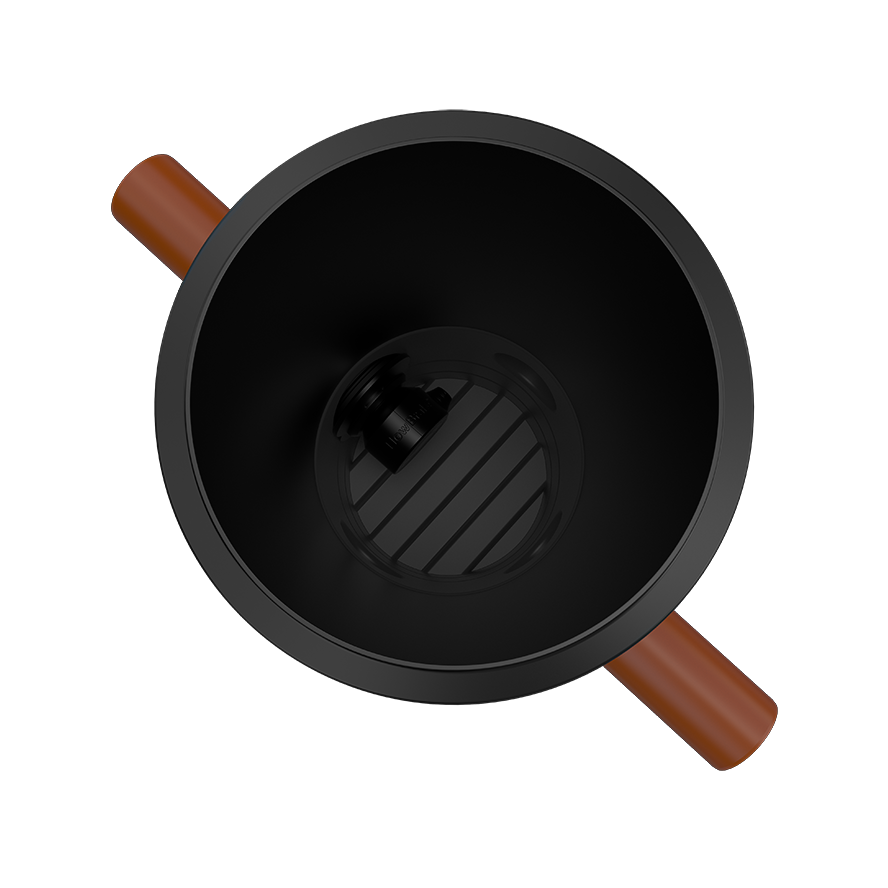

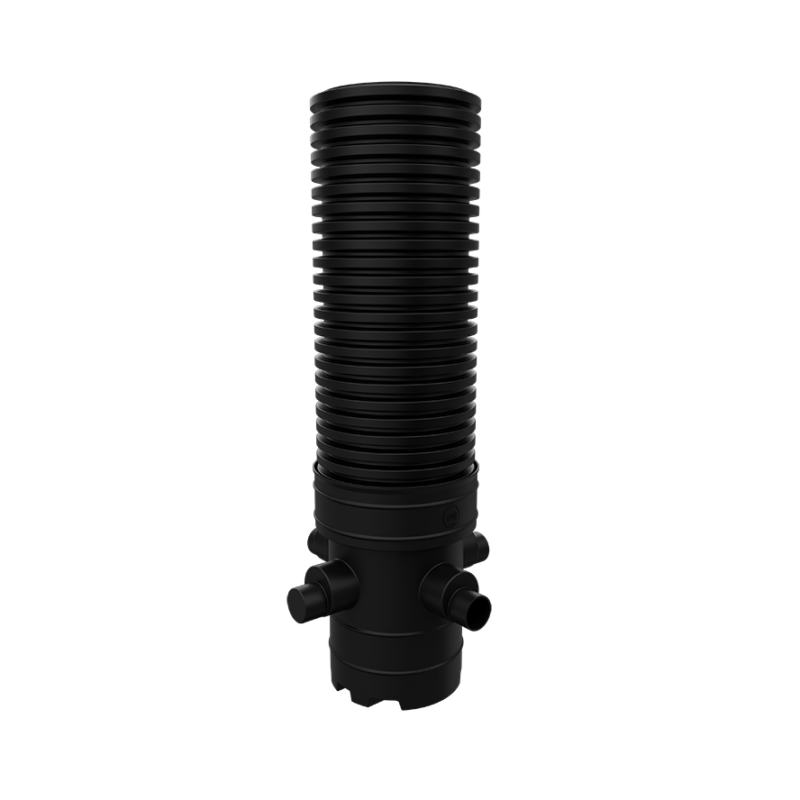

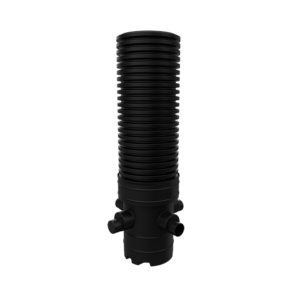

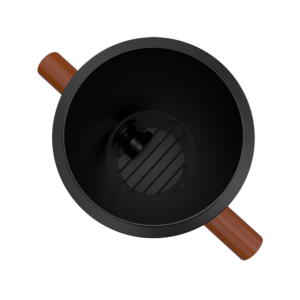

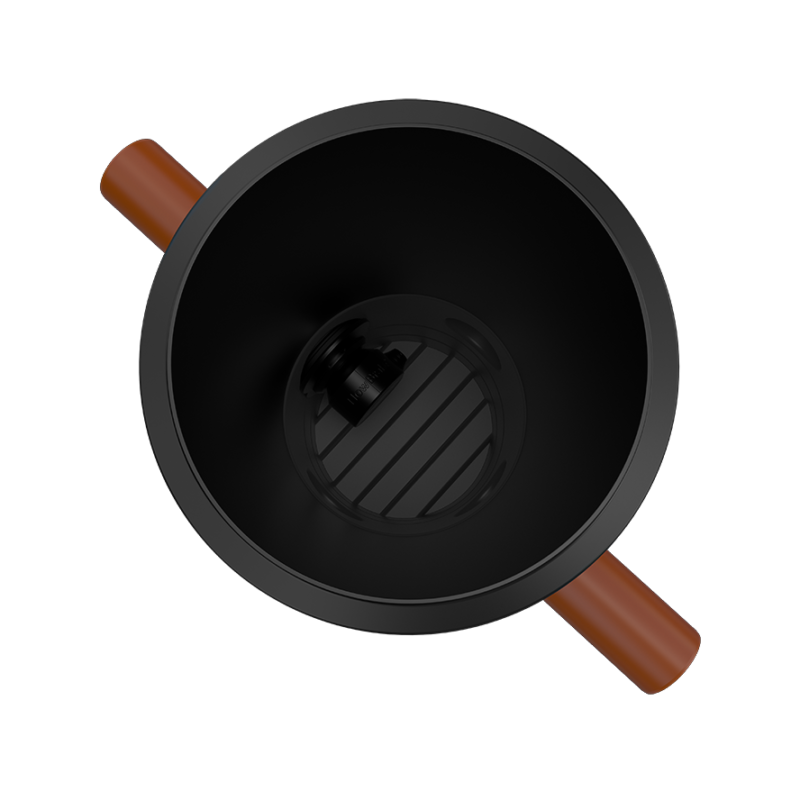

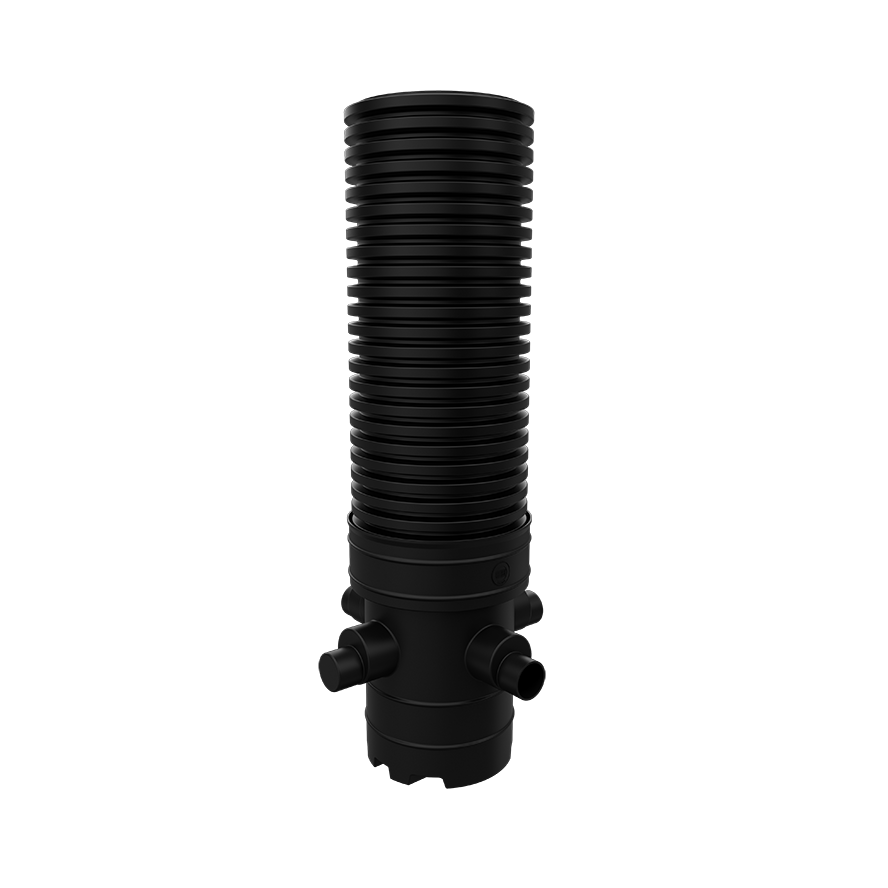

450mm diameter, pre-assembled flow control chamber, delivered ready to install

The VFCC450 model is designed for flow rates up to 2.1 L/sec dependent on design head

The larger diameter models in the Vortiflo range accommodate a larger flow rate and taller design head tolerance if required

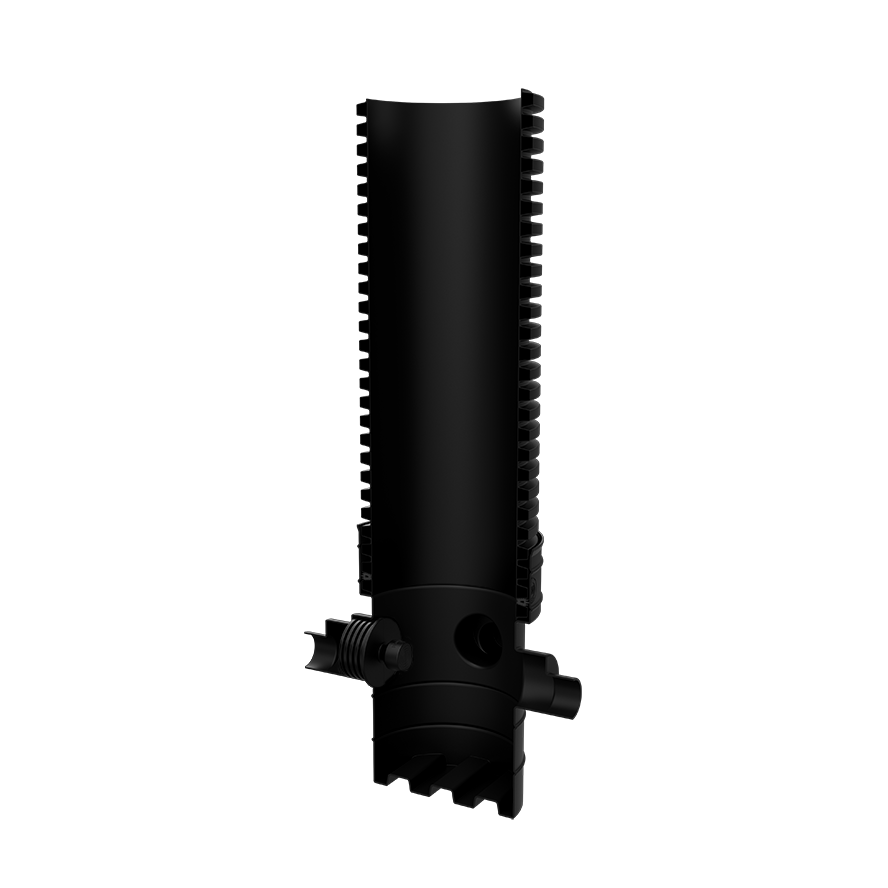

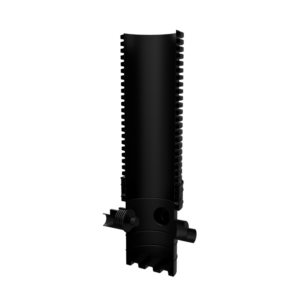

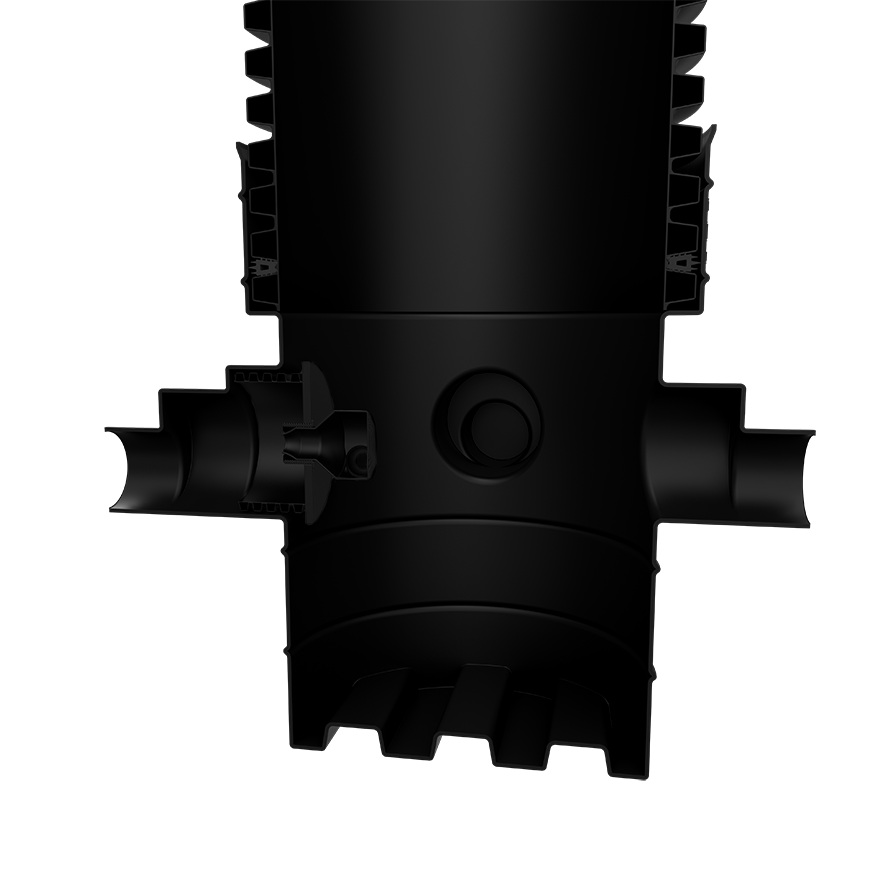

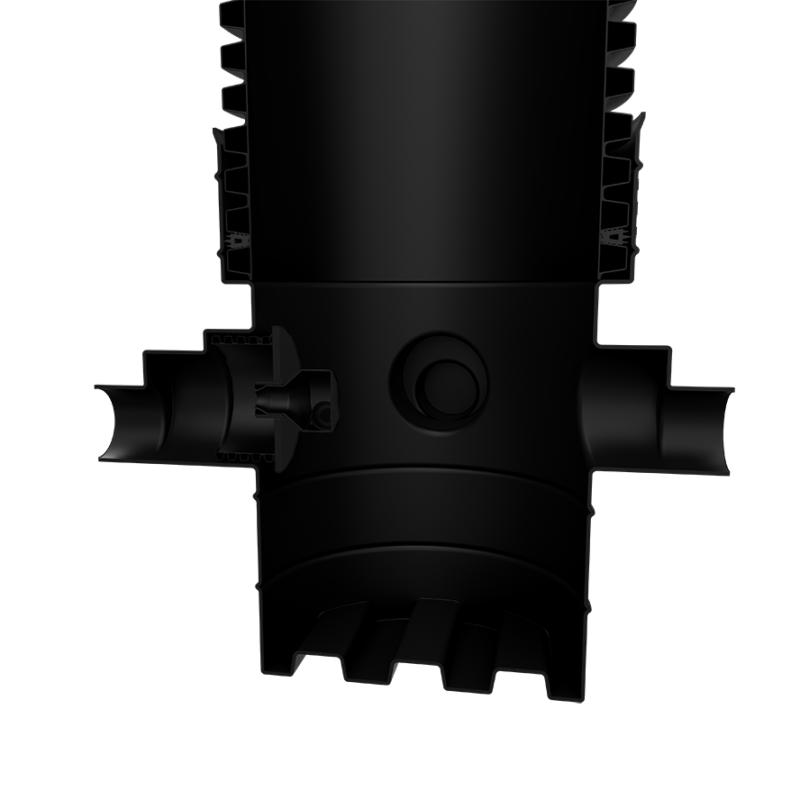

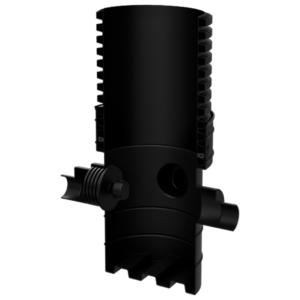

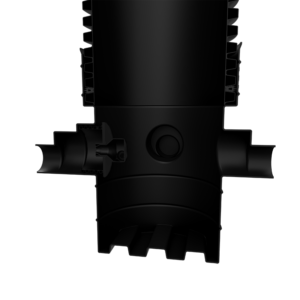

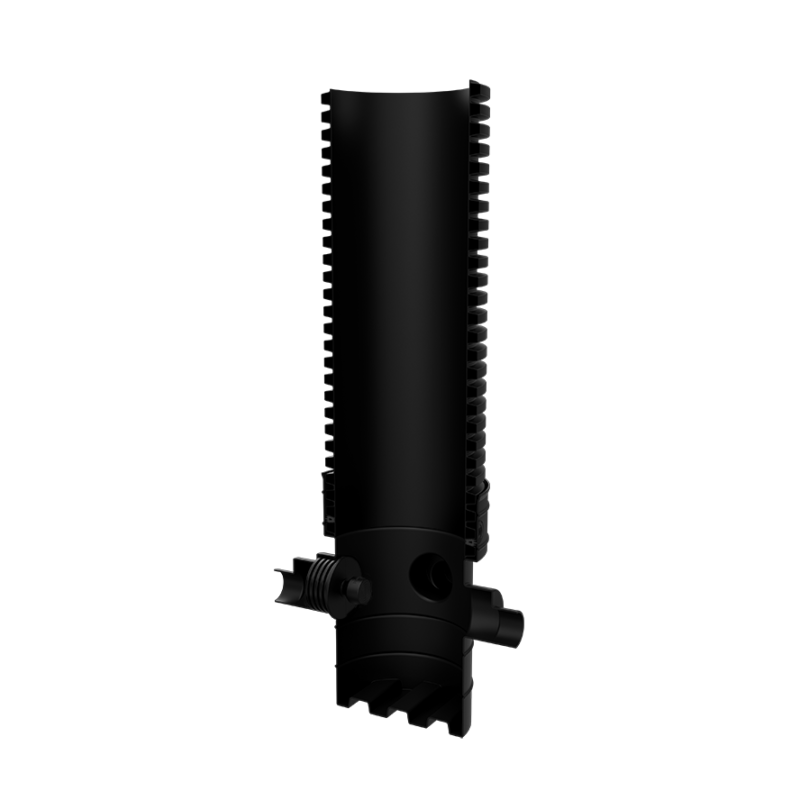

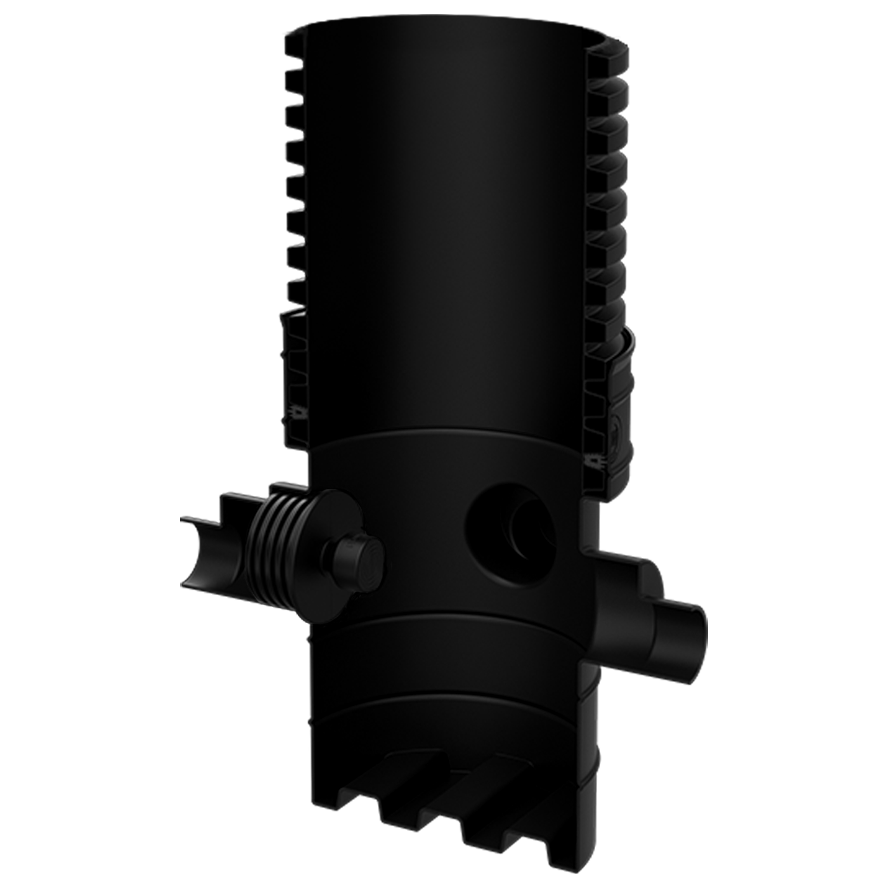

This model has a rotational moulded chamber base with 110mm or 160mm main channel socket connections including two further 110mm or 160mm side inlets at 90°, 270° from the outlet at 0°. Side inlets are supplied as blanked ends that can be used as required
