About the Product

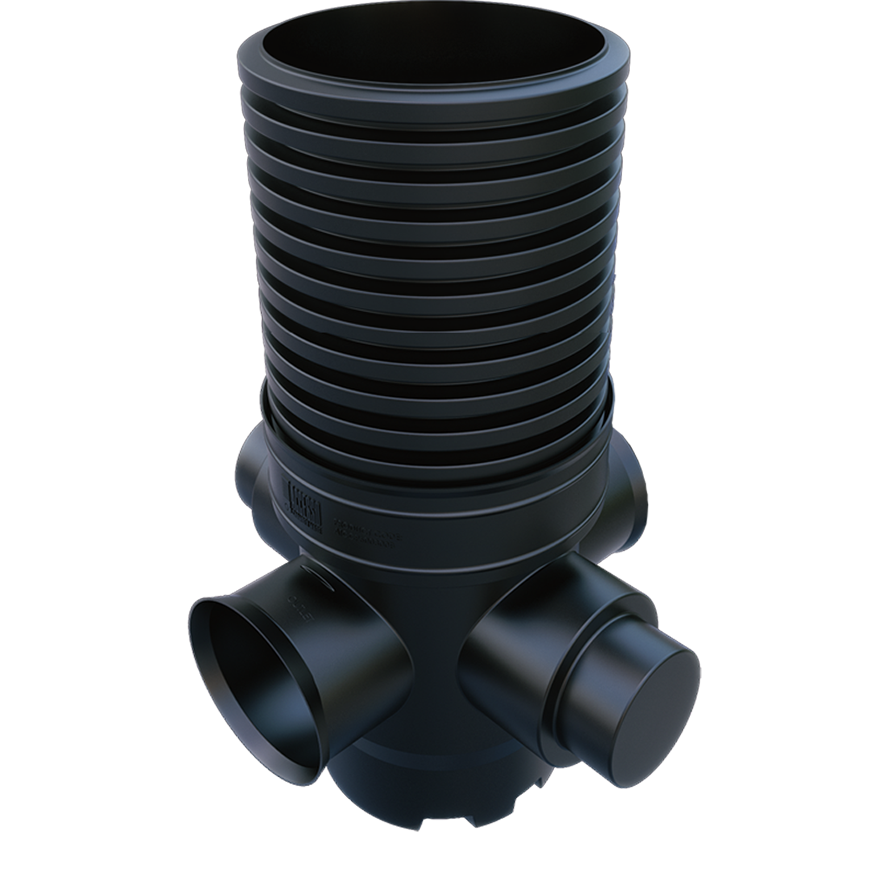

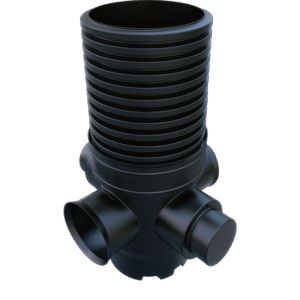

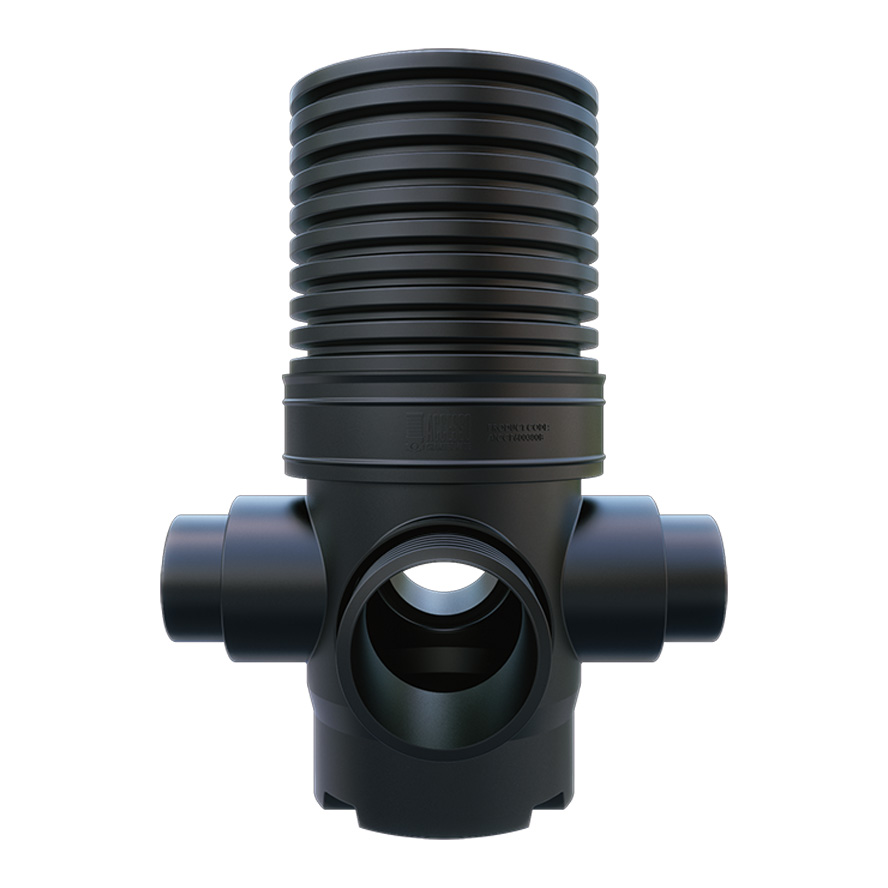

This Accesso catchpit chamber: Model – AICCP600300225B – has a Ø 600mm rotational moulded chamber base with 225mm or 300mm main channel socket connections, it also includes two further 225mm or 300mm side inlets at 90° and 270° from the outlet at 0°, which are provided as blanked ends for use as required.
This catchpit is the second from Turtle to feature a concentric base. Having a concentric base allows the product to be installed in significantly shallower installations than previously possible. Which broadens the range of potential applications while remaining cost-effective.
This catchpit chamber is available in 5 different models; as the base alone, or with 4 standard shaft depths. Furthermore, the chamber features a fall from the main inlet to the outlet to help promote flow.
We offer an alternative concentric base catchpit with 150mm and 225mm connections which you can see here.
The AICCP600300225B is built to the following standards and regulations | Design & Construction Guidance (Type D & E Chambers) | Building Regulations part H | BS EN 681-1.
About Accesso
Our extensive Accesso range is a series of high-strength plastic inspection chambers and catchpit chambers all delivered ready to install, that can cover both Foul and Surface water systems.
The Accesso brand features both injection moulded and rotational moulded chambers, which are designed to be compatible with a vast selection of water systems to suit your requirements.
Before leaving our factory, all chambers are tested per the required standards.
