About the Product
The OFCP450 Oriflo model is designed to handle flow rates up to 30 L/sec, which can be increased when introduced to systems with larger depth head drops.

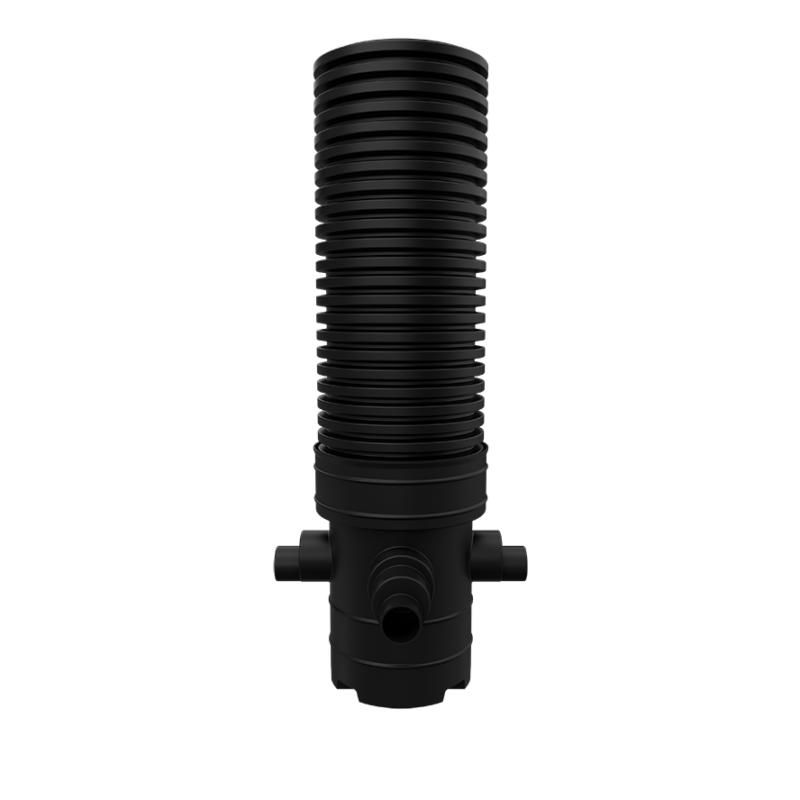

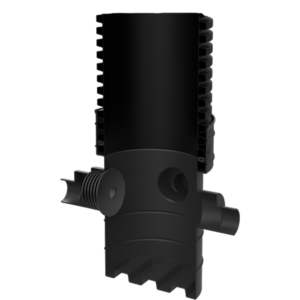

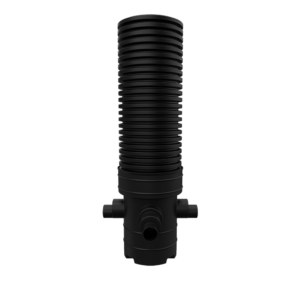

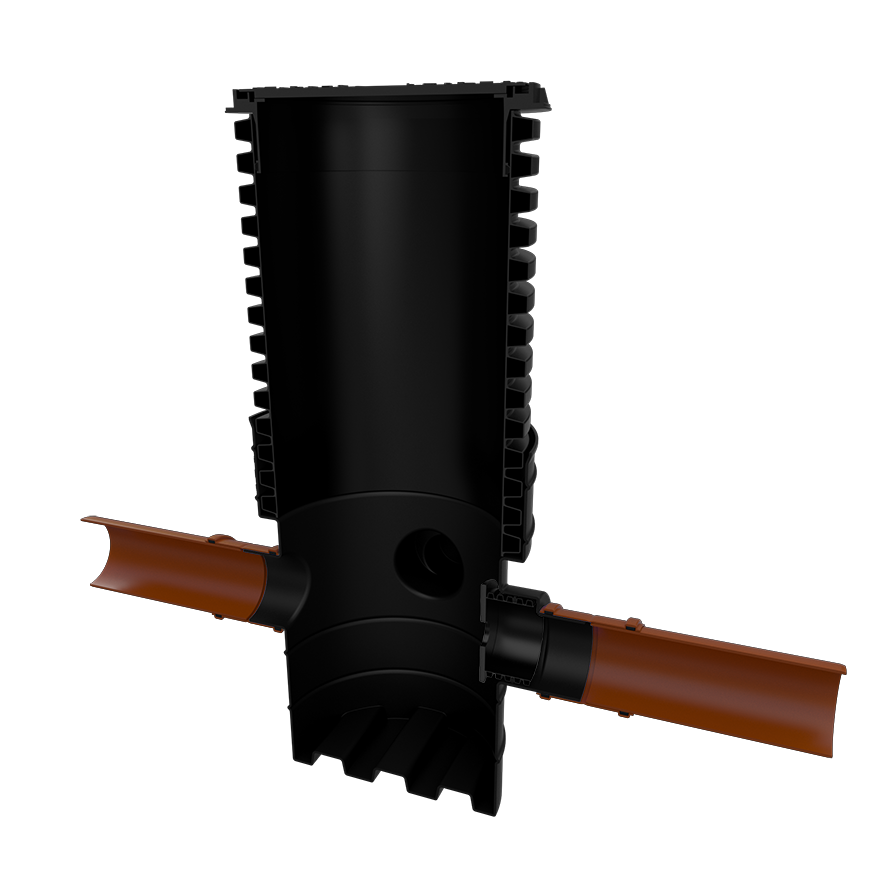

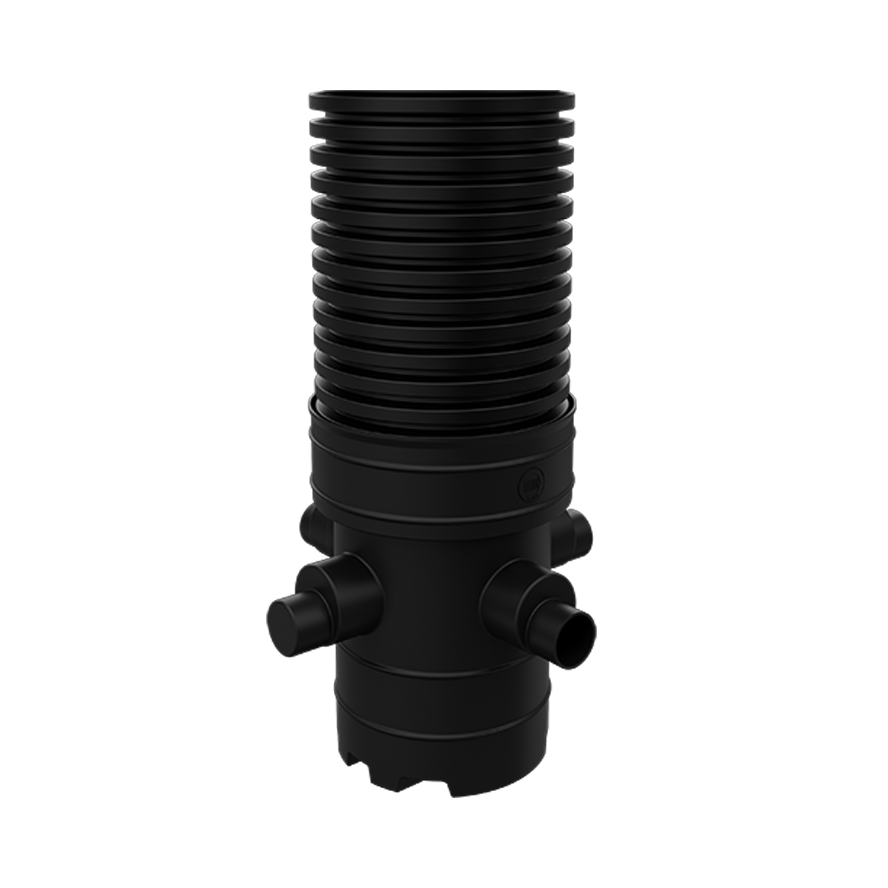

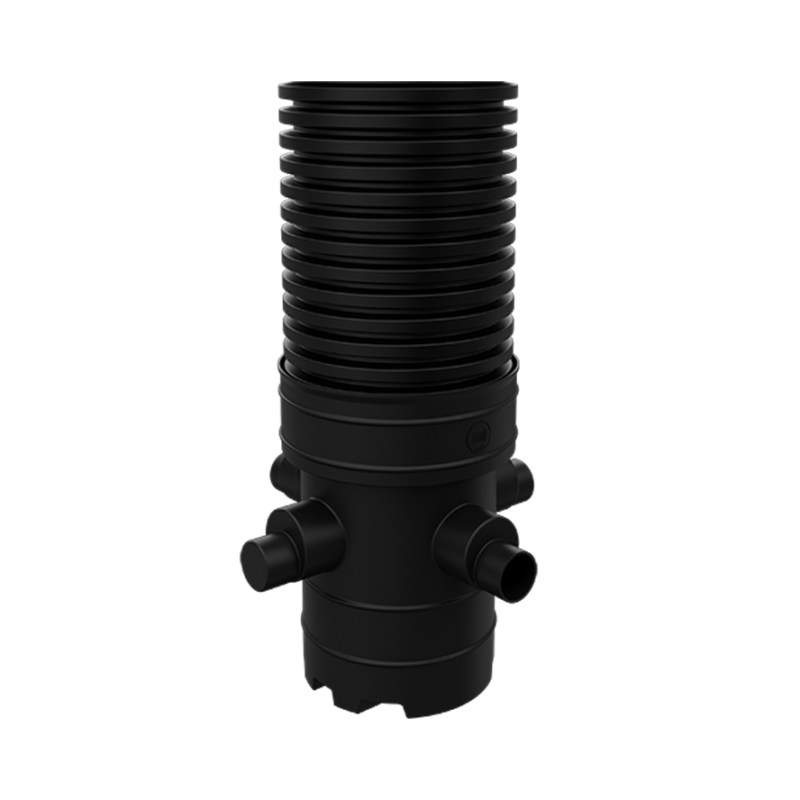

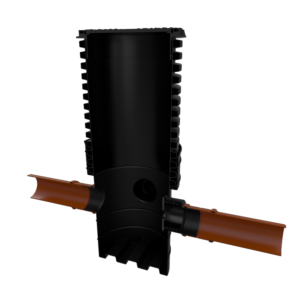

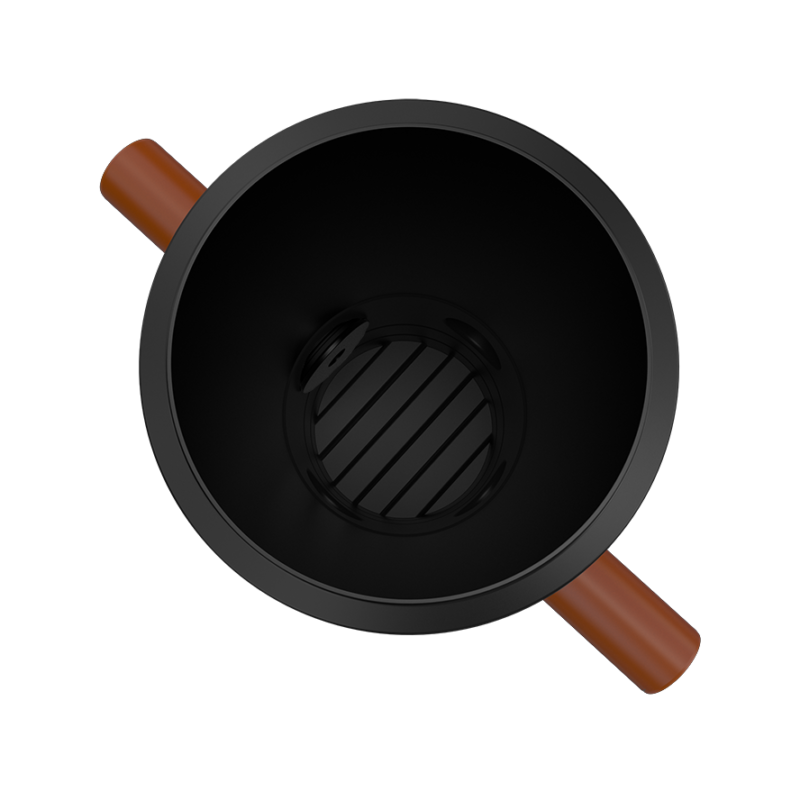

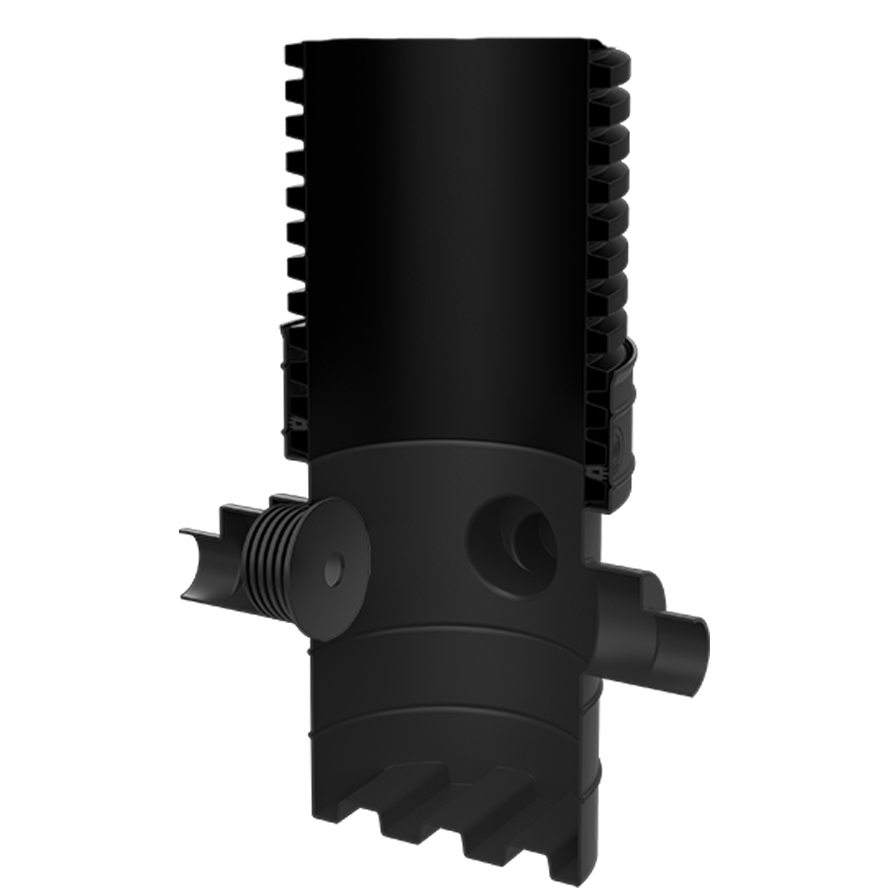

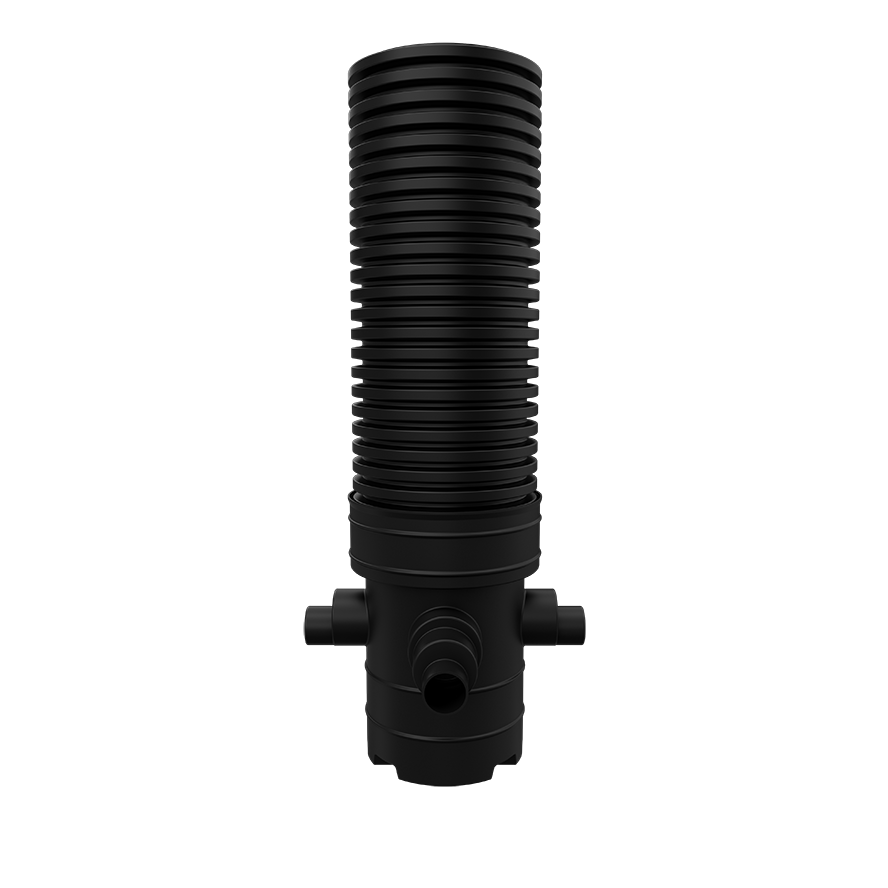

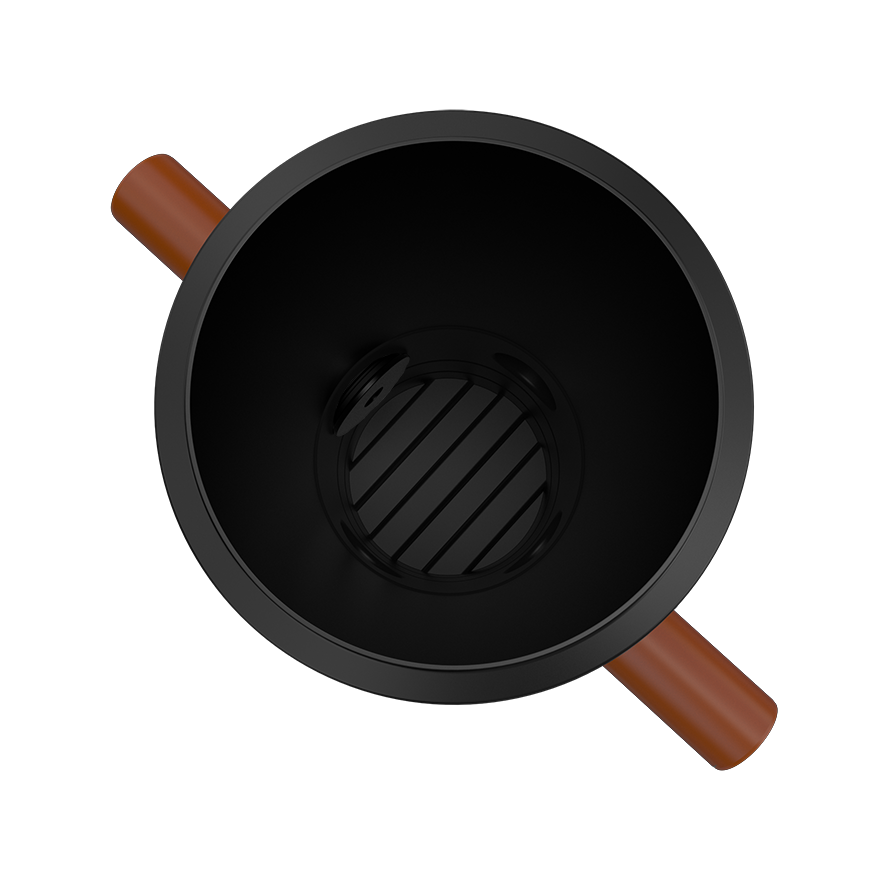

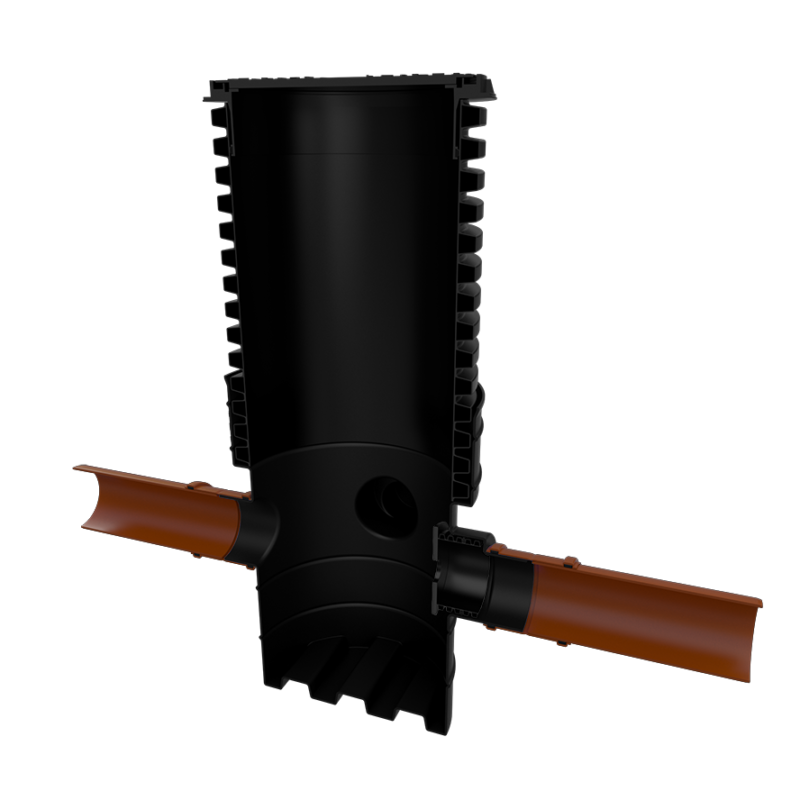

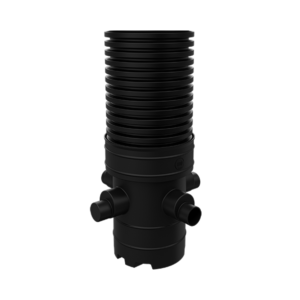

It features a Ø 450mm rotational moulded chamber base, which accommodates 110mm or 160mm EN 1401 main channel connections. Additionally, it includes two further 110mm or 160mm EN 1401 side inlets positioned at 90° and 270° from the outlet at 0°. These side inlets are supplied as blanked ends, allowing for use as needed.
We also offer an alternative model with a Ø 600mm chamber, available here.
About Oriflo
The Oriflo range consists of pre-assembled Orifice Flow Control Plate chambers that accommodate various flow rates.
The larger diameter models in the Oriflo range support higher flow rates and taller design head tolerances when required. Furthermore, all chambers are rigorously tested to meet the required standards and are delivered ready for installation.
All Oriflo Chambers are built to the following standards | Design & Construction Guidance (DCG) – Section C7.12 | CIRIA 75310.2 – 20.5 Compliance | BS 8582 – 9.6.
