About the Product
The OFCB600B Oriflo model is designed to handle flow rates up to 120 L/sec, which can be increased when introduced to systems with larger depth head drops.

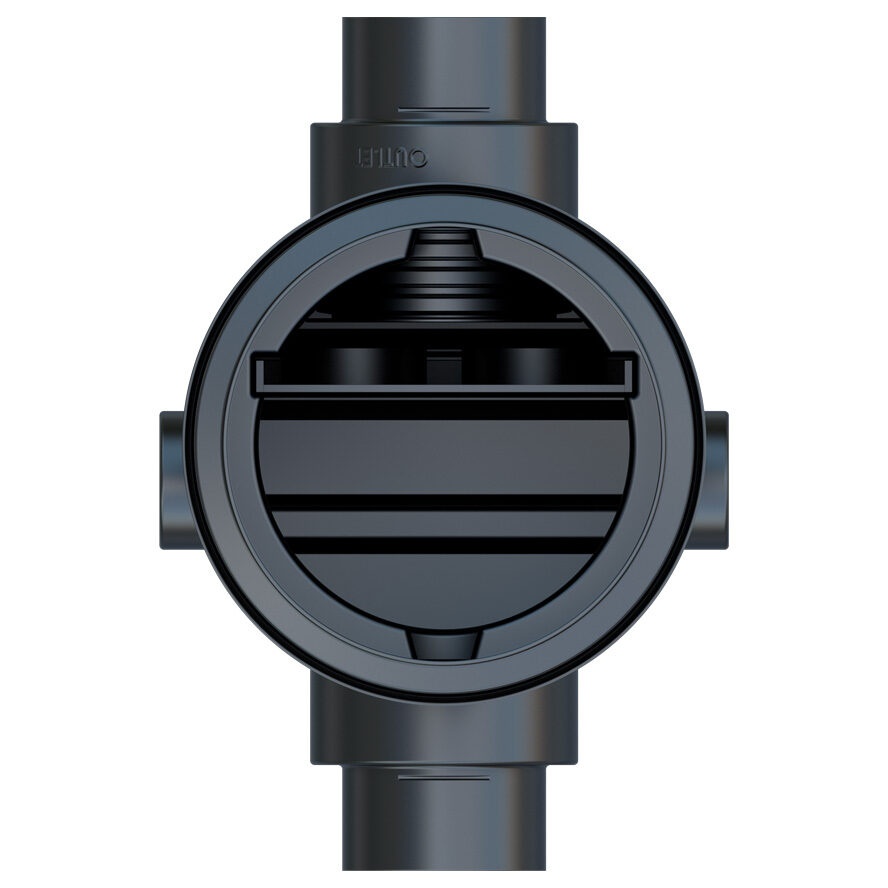

It features a Ø600mm rotational moulded chamber base, which accommodates 225mm or 300mm twinwall main channel connections accordingly. Additionally, it includes two further 150mm twinwall side inlets at 90° and 270° off centre from the outlet at 0°. Conversely, these side inlets are supplied as blanked ends, allowing for use as needed.

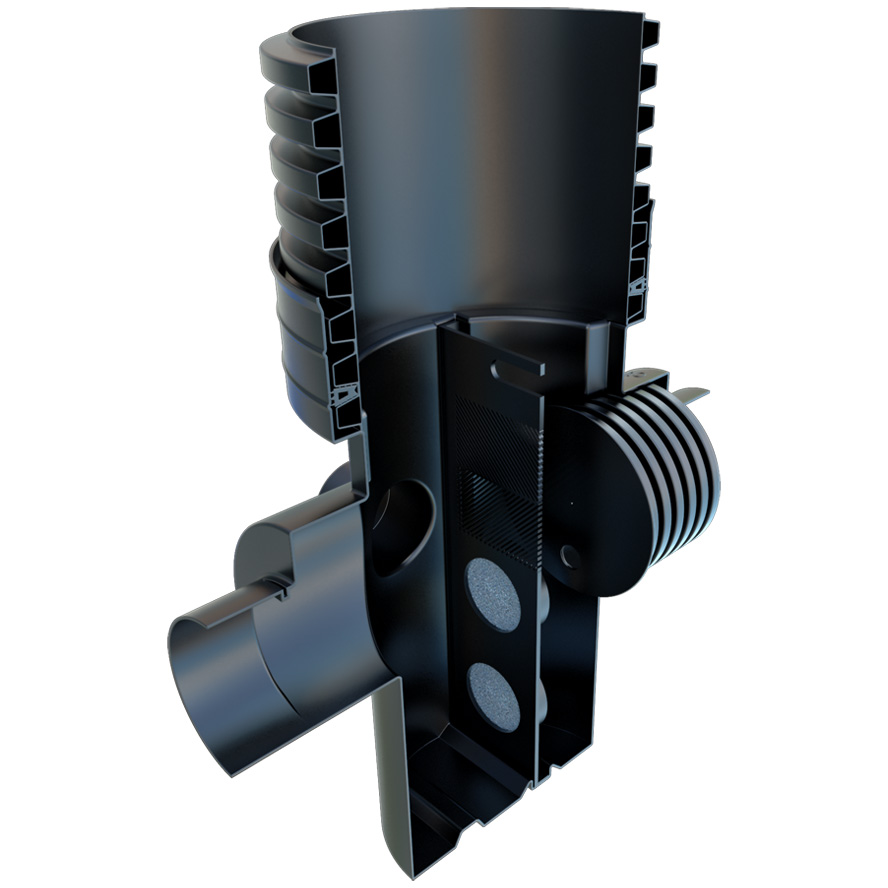

Furthermore, this model features a 100% recycled thermoplastic block (Blok), integrated into the barrier plate providing protection to the orifice. Subsequently, this barrier plate is installed into our rotational moulded chambers forcing all flow through the Blok filters before reaching the outlet, filtering out Total Suspended Solids including silt up to 30μm (0.03mm).
Alternatively, we offer a larger model with a Ø1050mm chamber, available here – or a smaller model with a Ø450mm chamber, available here.
We also offer an alternative model that does not feature our Blok filter technology, available here.
About Oriflo
The Oriflo range consists of pre-assembled Orifice Flow Control Plate chambers that accommodate various flow rates.
The larger diameter models in the Oriflo range support higher flow rates and taller design head tolerances when required. Furthermore, all chambers are rigorously tested to meet the required standards and are delivered ready for installation.
All Oriflo Chambers are built to the following standards | Design & Construction Guidance (DCG) – Section C7.12 | CIRIA 75310.2 – 20.5 Compliance | BS 8582 – 9.6.
