About the Product

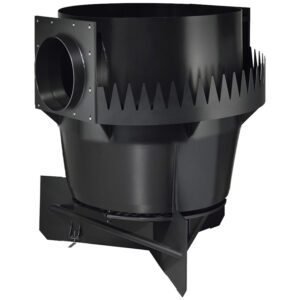

This SSK3000MLPVT model Stormshark is a stand alone unit, to be installed on site inside either a concrete, PE or GRP chamber. This is model is designed to accommodate pipework connection options up to 900mm.
The Specification of this model are as follows (excluding chamber):
- Overall Height – 2760mm
- Minimum Ø Chamber – 3000mm
- Height to Inlet Centre – 2209mm
- Standard Pipework Connection – 900mm
- Sediment Storage Capacity – 3.9m³
- Oil/Debris Storage Capacity – 2884 litres
- Weight – 432kg
We offer an alternative model that utilises smaller pipework and smaller oil/debris storage capacity while still being suitable for a Ø3000mm chamber.
About Stormshark
The Stormshark is an Advanced Hydrodynamic Separator with a unique patented design with a proven and tested performance. Designed for use in SuDS treatment trains, providing certainty of water quality treatment, enabling enhanced amenity and biodiversity downstream. Protecting and defending downstream controlled waters from sediment-bound pollutants.
Design certification & testing
Performance
The Stormshark removes sediment bound contaminants. Available in differing sizes to suit site flows and conditions. The Stormshark removes over 50% of fine TSS (0-200 microns, median size 75 microns) at design flows and up to 99% of TDS 0.1 to 0.4mm (coarse).
